ACCEL GRAPHICS, INC.
ACCELSTAR II
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
8MB SGRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus |
AGP |
|

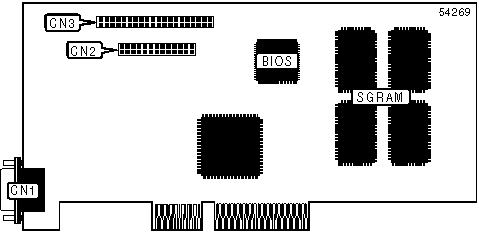

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Feature connector – video out |
CN3 |
|
Feature connector – video in |
CN2 | ||
|
MISCELLANEOUS TECHNICAL NOTES |
|
Memory chips located on both sides of the board. |
|
|
|
|
 |
|
