ACCEL PRO MX video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ACCEL GRAPHICS, INC.
ACCEL PRO MX
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
16MB DRAM, 8MB VRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus |
32-bit PCI |
|

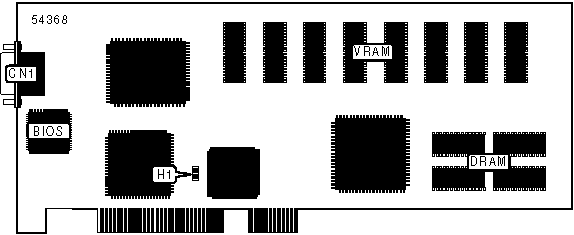

CONNECTIONS | |
|
Function |
Label |
|
15-pin analog video port |
CN1 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
VGA enabled |
H1 |
Open |
|
VGA disabled |
H1 |
Closed |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Memory chips located on both sides of the board. |
|
|
|
|
 |
|
